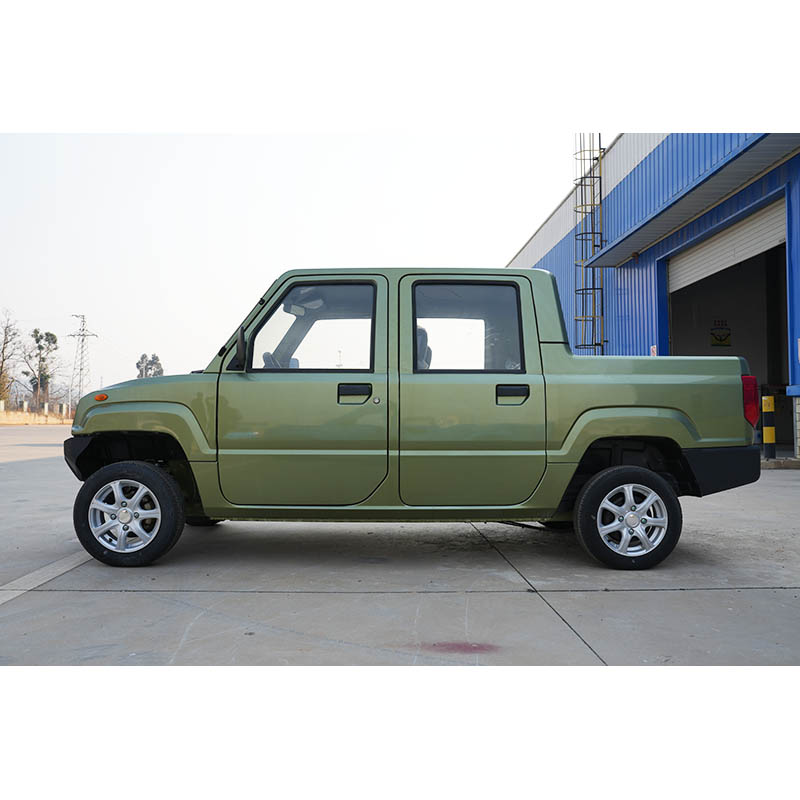

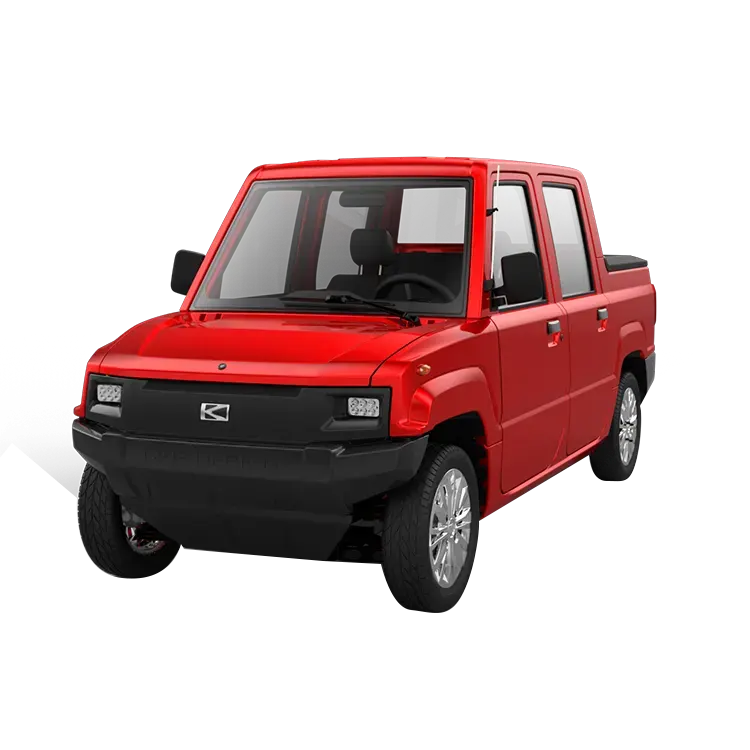

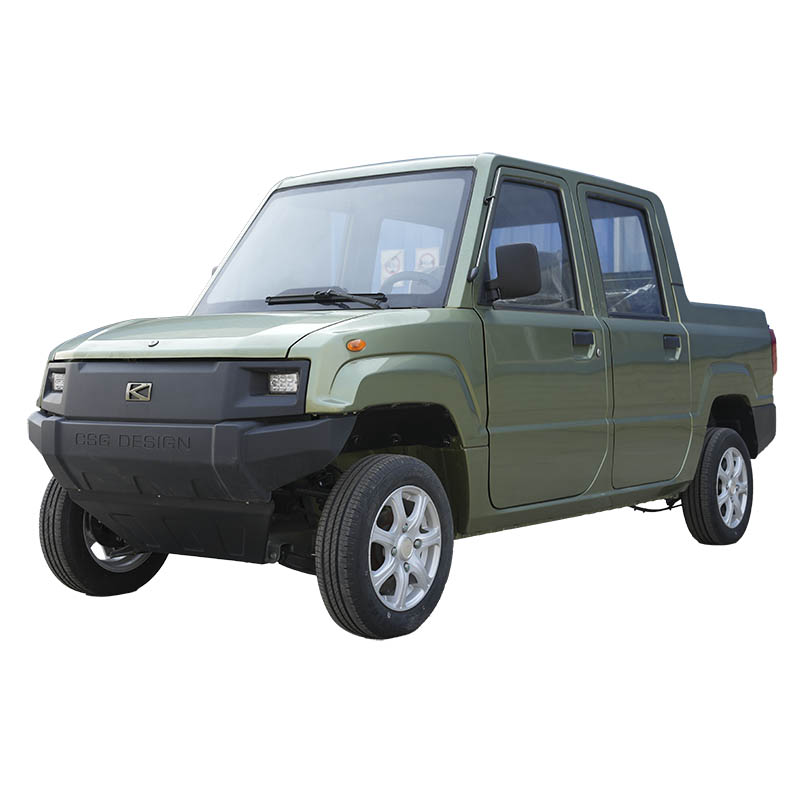

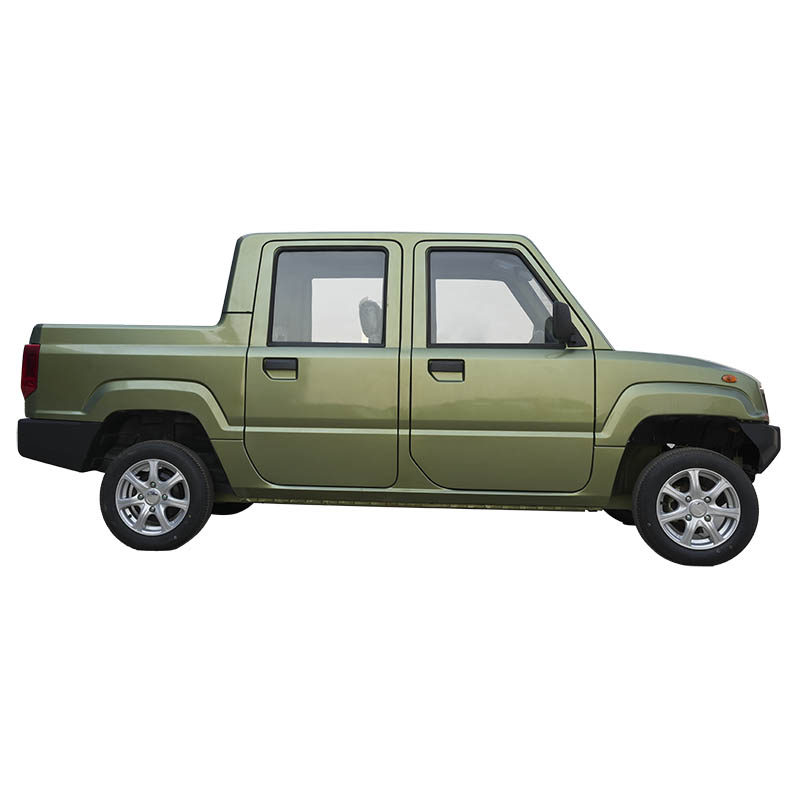

City Electric Pickup
  • City Electric PickupCity Electric Pickup
  • City Electric PickupCity Electric Pickup
  • City Electric PickupCity Electric Pickup
  • City Electric PickupCity Electric Pickup

City Electric Pickup

Efficient Urban Mobility Solution
The City Electric Pickup is an efficient electric transportation solution designed for urban residents and commercial purposes. Its outstanding performance and sustainability features make it an ideal choice for urban travel.

Send Inquiry

Product Description

Key Features:

Fast Urban Travel: Equipped with a high-efficiency motor, the City Electric Pickup effortlessly reaches speeds ranging from 45 to 60 kilometers per hour, providing a fast-paced urban commuting experience.

Zero Emissions: Powered by electric technology, the City Electric Pickup eliminates tailpipe emissions entirely, contributing to improved urban air quality and reduced environmental pollution.

Versatility: Designed to perform various tasks within the city, including cargo transport, logistics, urban maintenance, and more, it adapts to the needs of different industries.

Long-lasting Battery: Featuring a high-capacity battery, the City Electric Pickup boasts exceptional range, catering to your multiple daily travel needs.

Smart Connectivity: Integrated with smart connectivity features, it connects to smartphones and navigation systems, offering real-time traffic information and remote monitoring.

Safety First: Equipped with advanced safety systems, including brake assist, stability control, multiple airbags, ensuring the safety of both drivers and passengers.

Low Maintenance Costs: Electric vehicles come with lower maintenance costs, while charging expenses are significantly lower than traditional gasoline vehicles, providing an economical solution for commercial users.


Designed for Urban Living

The City Electric Pickup stands out for its flexibility, sustainability, and high performance, offering a fresh mode of travel for urban residents and businesses. Whether you need to transport goods within the city or seek an eco-friendly commuting option, the City Electric Pickup is your ideal partner.

Choose the City Electric Pickup for a green, efficient, and safe urban travel experience.


Parameter configuration

Model ID

YNKY1121S4

YNKY1121S5

Vehicle status

72V 4KW

72V 5KW

Right hand drive

Length×Width×Height (mm)

3655X1340X1560

3655X1340X1560

Container internal dimensions

900X1315X400

900X1315X400

Wheelbase (mm)

2495

2495

Front track (mm)

1195

1195

Rear track (mm)

1185

1185

Front suspension (mm)

455

455

Rear suspention (mm)

705

705

Curb weight (kg)

835

835

Load quality (kg)

150

150

Seats No.

4

4

Gross weight (kg)

1245

1245

Performance parameters





Max speed (km/h)

40

40

Acceleration time s (0-40km)

15

15

Max grade

0.25

0.25

Min turning diameter (m)

≤9

≤9

Maximum angle

36.3(outer wheel)/42(inner wheel)

36.3(outer wheel)/42(inner wheel)

Approach angle (°)

≥55

≥55

Departure angle (°)

≥30

≥30

Bauchfreiheit (mm, no load)

≥150

≥150

Body structure





Cab

Integral sheet metal

Integral sheet metal

Tube doors

-

-

Cargo box(bed)

Rear side

Rear side

Battery/motor parameters





Battery type

Maintenance-free
lead-acid batteries

Maintenance-free
lead-acid batteries

Battery specification(V/Ah)

72V ,100Ah

72V ,100Ah

 Battery optional

○  105Ah LFP
○  240Ah LFP

○  105Ah LFP
○  240Ah LFP

 Lithium electric heating plate

Range (no load) (km)

≥120

≥120

220V charging plug

110~220V charging plug (wide voltage)

 Charging time (20%-100%) (h)

8~10

8~10

Motor type

AC asynchronous motor

AC asynchronous motor

Rated power (kW)

4KW

5KW

Chassis/Wheel Braking





Drive form

RWD

RWD

Front suspension

Double wishbone coil spring independent suspension

Double wishbone coil spring independent suspension

Rear suspension

Vertical leaf spring (3 pieces)

Vertical leaf spring (3 pieces)

Drive axle

Integral (speed ratio 12.76)

Integral (speed ratio 12.76)

Front brake

Disc

Disc

Rear brake

Drum

Drum

Rim

13x4.5B(aluminum)●
13x4.5(aluminum)○

13x4.5B(aluminum)●
13x4.5(aluminum)○

Tire

155/65 R13●

155/65 R13●

power-assisted steering

Brake assist

Inside/outside configuration





Door lock

Electric

Electric

Window

4 doors electric

4 doors electric

Front Seat

Four-way adjustable, with headrest, with map pocket

Four-way adjustable, with headrest, with map pocket

Rear seat

Bench seat, foldable, with headrest

Bench seat, foldable, with headrest

Seat headrest

front●/rear●

front●/rear●

Jump seats

-

-

AC

Towing

Front receiver

-

-

Interior rear view mirror

Instrument

Metric●
British○

Metric●
British○

Front searchlight

Roof spotlight

-

-

AVS Sound Module

Side retro reflector

Red reflective stickers

Seat belt

front●/rear○

front●/rear○

Seat belt certification

DOT●
Emark○

DOT●
Emark○

Reverse image

Mp5

7“MP5●
Korean language○
Russian language○

7“MP5●
Korean language○
Russian language○

Fender extensions

-

-

Car cover

Child lock

Front bumper

Rear bumper

-

-

Pedal rack

-

-

Roll cage

-

-

Spare tire

-

-

Charger plug

China standard●
American standard○
European Standard○
British standard○
Italian standard○

China standard●
American standard○
European Standard○
British standard○
Italian standard○

VIN

●right/○left

●right/○left

Spray wax

Swatches

Rubber Liner


Note In addition to white, red, yellow do not add money, other colors for special colors need to add 300 RMB, charger plug if not the national standard will make up the difference, the difference in 20-100 RMB

"-" indicates that this configuration is not available. "○" represents optional items, which need to be selected and explained; ● Indicates the standard configuration item.
